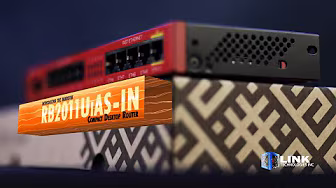

RB2011UiAS-IN
Desktop metal case, 5xEthernet, 5xGigabit Ethernet, USB, LCD, PoE out on port 10, 600MHz CPU, 128MB RAM, RouterOS L5
Availability: 28 in stock
MSRP Price: $119.00
$101.60
The RB2011 is a low cost multi port device series. Designed for indoor use, and available in many different cases, with a multitude of options.
The RB2011 is powered by RouterOS, a fully featured routing operating system that has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring - just a few of the vast number of features supported by RouterOS.
RouterBOARD 2011UiAS-IN, in comparison with the RB2011L series, not only has five Gigabit LAN ports and five Fast Ethernet LAN ports, but also has an RJ45 serial port, a USB port, and more RAM (128MB instead of 64MB). Also, it has RouterOS L5 license (instead of L4) and a nice touchscreen LCD for configuration. SFP cage is also present (SFP module not included!)
Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)
There is a PoE output function for port #10 it can power other PoE-capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.
RouterBOARD 2011UiAS-IN comes with a desktop enclosure, an LCD panel, and a power supply.
Wall mount kit (product code RBWMK) for the network closet is available for purchase as an optional accessory.
Specifications
| Details |
|---|
| Product code | RB2011UiAS-IN |
| Architecture | MIPSBE |
| CPU | AR9344 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Switch chip model | AR8327 |
| Dimensions | 214mm x 86mm for PCB |
| RouterOS license | 5 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 60°C |
| Suggested price | $119.00 |
Powering
| Details |
|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 8-30 V |
| Max power consumption | 6 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 8-30 V |
PoE-out
| Details |
|---|
| PoE-out ports | Ether10 |
| PoE out | Passive PoE |
| Max out per port output (input 18-30 V) | 510 mA |
| Max total out (A) | 510 mA |
Ethernet
| Details |
|---|
| 10/100 Ethernet ports | 5 |
| 10/100/1000 Ethernet ports | 5 |
Fiber
| Details |
|---|
| SFP DDMI | Yes |
| SFP ports | 1 |
Peripherals
| Details |
|---|
| Serial console port | RJ45 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 2 |
Other
| Details |
|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Beeper | Yes |
Certification & Approvals
| Details |
|---|
| Certification | CE, EAC, ROHS |
| IP | IP20 |
