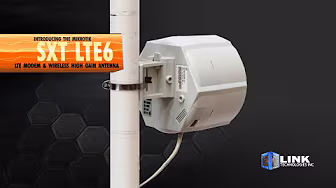

SXT LTE6 kit

he evolution of affordable connectivity in remote areas
Manufacturer: MikroTik
Availability: 1 in stock
SKU: RBSXTR&R11e-LTE6
MSRP Price: $149.00
$122.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

SXT LTE6 kit is a device for remote locations that are within cellular network coverage. Due to its advanced LTE chip design and high gain antenna, it can provide connectivity for your building even where cell phones fail.

The new SXT LTE6 features a CAT6 LTE modem, which enables carrier aggregation and allows the device to use multiple bands at the same time. A huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside. We have seen Internet speed doubling in rural areas after switching to CAT6, so there is no need to wait for cable network expansions.

The unit is equipped with two Ethernet ports (the second port has PoE-out functionality), so you can use it to power up another device. It also has two Micro SIM slots for backup link. Unit is shipped with a 24 V power supply, but can support full range 18-57 V and is 802.3af/at compliant.

Specifications

Details
Product codeRBSXTR&R11e-LTE6
ArchitectureMIPSBE
CPUQCA9531
CPU core count1
CPU nominal frequency650 MHz
Switch chip modelQCA9531
RouterOS license3
Operating SystemRouterOS
Size of RAM64 MB
Storage size16 MB
Storage typeFLASH
MTBFApproximately 200'000 hours at 25C
Tested ambient temperature-30°C to 60°C
Suggested price$169.00


Powering

Details
Number of DC inputs1 (PoE-IN)
Max power consumption21 W
Max power consumption without attachments7 W
Cooling typePassive
PoE in802.3af/at
PoE in input Voltage12-57 V


PoE-out

Details
PoE-out portsEther2
PoE outPassive PoE up to 57V
Max out per port output (input 18-30 V)600 mA
Max out per port output (input 30-57 V)400 mA
Max total out (A)600 mA


Mobile

Details
2G CategoryClass12
2G bands2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
3G CategoryR7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G bands1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category6 (300Mbit/s Downlink, 50Mbit/s Uplink)
LTE FDD bands1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz)
LTE TDD bands38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz)
TAC35666210


Ethernet

Details
10/100 Ethernet ports2


Peripherals

Details
Number of SIM slots2 Modem (Micro SIM)
MiniPCI-e slots1


Other

Details
Mode buttonYes


Certification & Approvals

Details
CertificationCE, EAC, ROHS
IPIP54
